Roll-a-Print

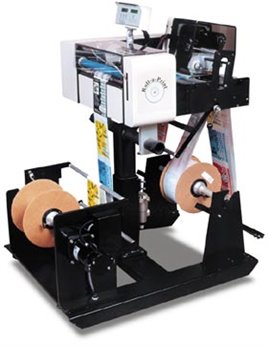

Roll-a-Print™ Print Station
6 Printers in 1!
Models RAP-1400 & RAP-2800

1. Perforated or Pre-Opened Bags on Roll Printer - Print on non-printed or printed bags on rolls registering to the bag perforation or preprinted areas.

2. Roll Stock Printer - Print on film with the assurance of precise print registration with optical registration sensor. Or, set the repeat to print every 3", 10", or 20" for instance.

3. Add-on Printer - Have several baggers but no printers? Position the Roll-A-Print behind your bagger for inline printing. Or, need to add printer to the other side of the bag? Then add this printer to your bagger/printer combination for additional printing requirements.

4. Stand-alone Printer - With the winder attachment, print bags or roll stock film from a roll onto a roll, then rewind the rolls for later use on baggers or hand sealing equipment.

5. Inline Printer - Position the Roll-A-Print behind your existing bagger or form-fill-seal equipment. As your bagger feeds film, the print station supplies printed film on demand.

6. Two Color Printer - RAP-2800 has two print heads for two color printing. You select the ribbon colors.


Standard Features:
RAP-1400 RAP-2800
  • Print up to 5" wide on films up to 14" wide.
    		•
  • Three configurations available to meet your printing needs:
    		•
  • Optical and perforation registration units.
    		•
  • Top & bottom printer - Print both sides of your POR or Pre-Opened Bags on Rolls, up to 5" wide print and 14" wide film.
    		•
  • Microprocessor controls with menu driven operator panel, status LED's and countdown counter.
    		•
  • Two color printer - Print using two print heads, each with a different color ribbon, on one side of the film.
    		•
  • Prints directly to the surface of the film with no head adjustments for variable media thickness.
  • Side-by-side printer - with two print heads side by side, print up to 10" total print area width on film up to 28" width.
  • Print on bags (Pre-Opened Advanced-Poly Bags on Rolls), roll stock, polyethylene, polypropylene, and laminated films.
    		•


    Technical Specifications:
    Description Roll-A-Print
    Print Head5"/305 dpi
    Print Speeds3", 5", 8"/sec.
    Print Area5" x 12"
    Weight200/265 lbs
    Dimensions32" x 44" x 30"
    Ribbon Width2" up to 5"
    Electric110/220V, 60/50Hz
    Ribbon Near edge, Ink wound outside of roll
    Barcode TypesUPC-A, UPC-E, EAN128, EAN13, EAN8, JAN8,JAN13, NW-7, CODE93, CODE128, ITF, MSI
    Characters Alphanumeric, Symbols, Special Characters
    FontsTimes Roman, Helvetica, Presentation, Letter Gothic,Prestige, Courier, OCR-A, Outline Font, Writable, Windows True-Type
    Other Features Lines: Horizontal, Vertical, Slant and Square. Rotation: 0, 90, 180, 270

    Roll-A-Print Print Station
