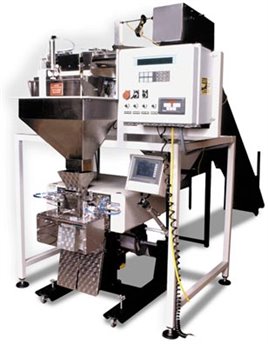

Ultra-Scale™ Series Model US-7000 Automatic Net-We
An automatic feeding solution for fasteners, injection molded components, foods or any other bulk products, this net-weigh scale is accurate to .01 lbs. Double production with our dual scale head design or keep it simple with our single head scale.
Standard Features:
- All stainless steel contact surfaces.
- Programmable bulk & dribble setting.
- Three tray vibratory feed system.
- Nema 4 enclosure, microprocessor based controls.
- Standard 2 cubic foot supply hopper.
- Discharge chute to suit bagger funnel opening.
- Pneumatic discharge mechanism.
- 400 cubic inch weigh capacity.
- Clam type weigh bucket can instantly be removed for cleaning.
- Painted steel stand/support.
Options:
- Stack Light, Exit Conveyor, Discharge Pusher/Blower
Specifications:
| Description |
US-7000 Net Weigh Scale |
| Heads Available |
1 to 4 |
| Weight |
250 lbs. (higher for dual head + scales) |
| Dimensions (footprint) |
28" x 30" x 26"-34" (adj. height) |
| Supply Hopper Load Height |
38" to 49" (adjustable) |
| Load cell |
10, 25, or 50 lbs. |
| Accuracy |
Up to .01 lbs. |
| Electric |
110/220v, 60/50Hz |
| Air |
40 psi |
| Scale Controller, Supply Hopper, Discharge Funnel, Manual,One Year Parts Warranty Included
|
US-7000
|
|

|

|
