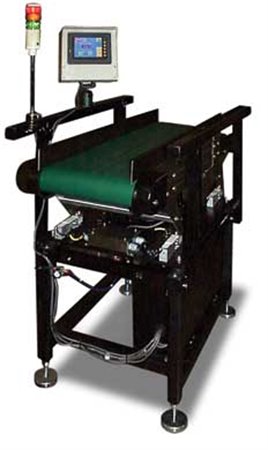

Ultra-Scale™ Series Model US-6000 Conveyor Check-W
The US-6000 Check-Weigh Conveyor Scale offers exceptional accuracy and reliability for continuous-feeding applications. Check-weigh bags, cartons, and finished goods to detect
and discharge out of range product.
Touch screen controlled with pop-up windows, weigh history, job saves, accuracy charts and auto tare and auto zeroing functions.
Standard Features:
- Full Color Touch Screen
- Over/Under/Accept Display
- 96 Job Saves
- Accuracy Chart and History
- 6" or 12" wide conveyor (varies based on carton size)
- 6' in feed conveyor (varies based on quantity of cartons in que)
- DC motors with adjustable speed controls
- Painted tubular steel framework
Options:
- Stack Light, Exit Conveyor, Discharge Pusher/Blower
Specifications:
| Description |
US-6000 Conveyor CW Scale |
| Weight |
175lbs. |
| Dimensions |
26” x 36” x 48” |
| Load Height |
Adjustable 30"-42" |
| Load Cell |
(4) 10 kg. cells |
| Accuracy |
Up to .007 lbs. |
| Electric |
110/220v, 60/50Hz |
| Air |
40 psi |
| Scale controller, Conveyor, Manual One Year Parts Warranty Included
|
|
|

|

|
